| Item /Type | NDOLV32 (SMD 3225 LVDS差分晶振) |

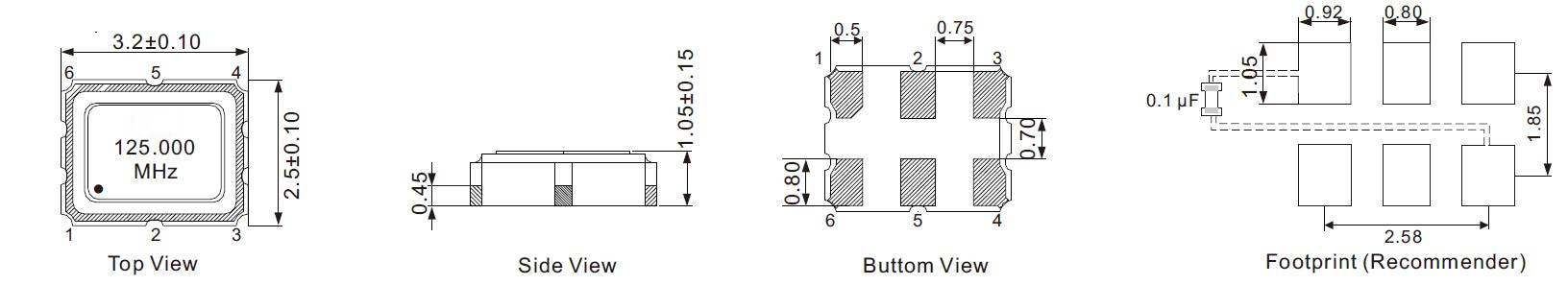

| Dimensions | 3.2×2.5×1.00 |
| Output | LVDS |
| Output load |
100Ω |
| Output frequency range | 10MHz~250MHz |
| Supply voltage | 2.5V / 3.3V |
| Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating temperature |
-20~+70ºC, -40~+85ºC |
| Current consumption |
100mA max. |
| Differential output voltage (VOD) |
25mA max. |
| Symmetry |
45%~55% |
| Chang to VOD / Offset voltage (VOS) |
50mV max. / 1.15V~1.35V |
| Offset to VOS | 50mV max. |
| Input voltage Vih (min.) / Vol (max.) |
70% Vcc min. / 30% Vcc max. |
| Rise / Fall time |
1ns max. |
| Start-up time |
10ms max. |
| Storage temperature |
-55~+125ºC |
| Phase jitter (12KHz~20MHz) |
1 pSec Max. |
