型号 |
NUSD/NUSSD(HC-49SMD晶振 / HC-49SSMD晶振) | |
|
频率范围 |
3MHz~100MHz | |
|
频率公差@25℃ |
±10ppm~±30ppm,或定制 | |
|
频率稳定性(工作温度) |
±10ppm~±30ppm,或定制 |
|
|
工作温度 |
-20℃~+70℃,-40℃~+85℃,或定制 | |
|
静态电容 |
7pF max | |
|
驱动功率 |
100μW典型值(500μW max) | |
|
负载电容 |
8pF~32pF,或定制 | |
|
谐振电阻(ESR) |
3MHz~3.5MHz |
300Ω max Fund. |
|
3.5MHz~6MHz |
120Ω max Fund. |
|
|
6MHz~10MHz |
60Ω max Fund. |
|
|
10MHz~14MHz |
40Ω max Fund. |
|
|
14MHz~48MHz |
30Ω max Fund. |
|
|
27MHz~30MHz |
100Ω max 3rd Overtone |
|
|
30MHz~50MHz |
80Ω max 3rd Overtone |
|
|
50MHz~100MHz |
60Ω max 3rd Overtone |
|
|
存储温度 |
-55℃~+125℃ | |
|
老化率@25℃ |
±3ppm/年 max | |
|

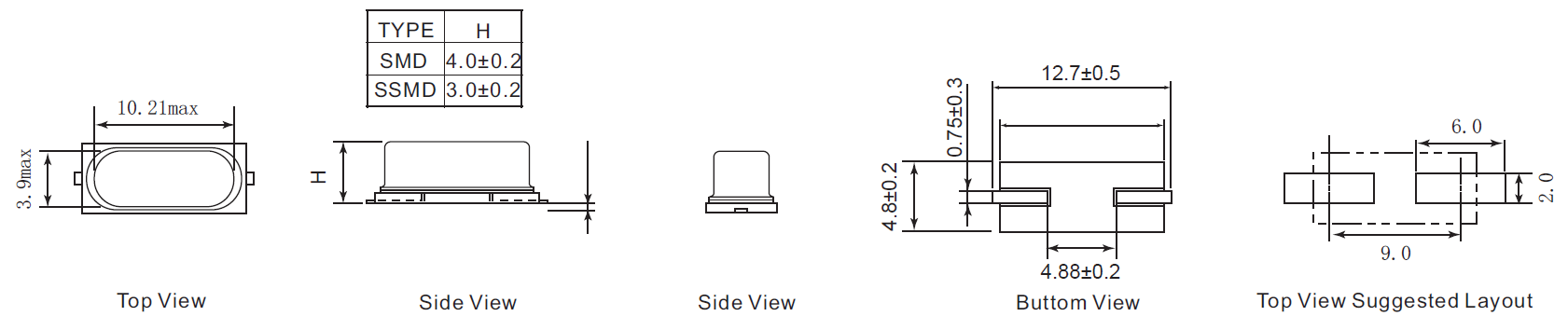

产品尺寸(L×W×H) |
12.7×4.8×4.0/3.0 [49SMD/49SSMD] mm |
|
