| Item /Type | NSPHS/ DIP-8全尺寸插件有源晶振 |

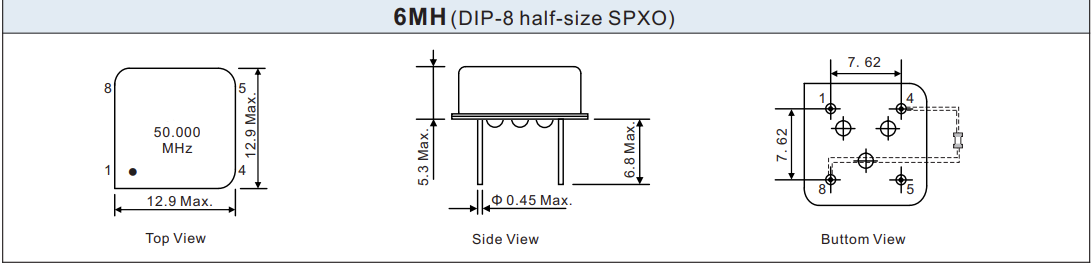

| Dimensions |
12.9×12.9×5.30 mm |
| Output Type | CMOS /HCMOS |
| Output Load | 15pF, or specify |
| Output Frequency Range | 0.25MHz~180MHz |
| Supply Voltage | 3.3V / 5.0V |
| Frequency Stability(All Condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating Temperature Range |
-20~+70ºC, -40~+85ºC, or specify |
| Current Consumption |
10 mA ~ 45 mA (frequency dependent) |
| Stand-by Current | 20µA max. |
| Symmetry | 40%~60% |
|
Output voltage Voh (min.) |
90% Vcc min. /Vcc-0.4V min. |
|
Output voltage Vol (max.) |
10% Vcc max. /0.4V max. |
|
Input voltage Vih (min.) |
80% Vcc min. |
|
Input voltage Vil (max.) |
20% Vcc max. |
|
Rise time / Fall time |
5ns max. |
|
Start-up time |
10ms max. |
|
Storage temperature Range |
-55~+125ºC |
|
Aging |
±3ppm /year max. |
